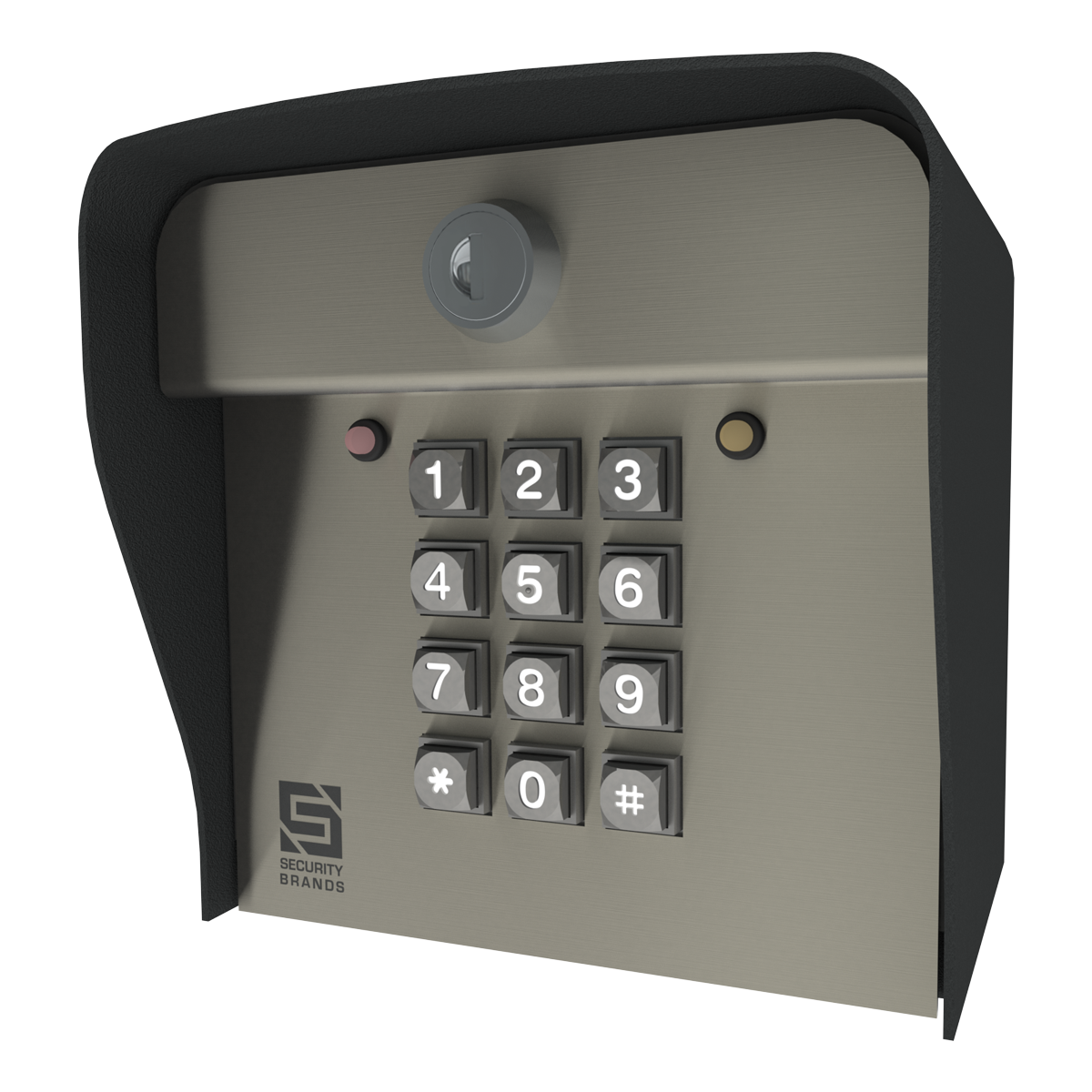

Advantage DK – Digital Keypad – 1,000 Codes – Post Mount

Model ADV-1000
SKU: ADV-1000 Categories: ,

Product Description

The Advantage DK line of digital keypads offers a varying selection of post-mount models and is available with a call button and durable 8-ohm speaker allowing integration with a built-in intercom station or a Knox Lock cutout.

Advantage DK is fully programmable from the keypad. Post-mount models feature a high-grade stainless-steel faceplate and metal keypad and are housed in a powder-coated steel enclosure that will provide years of trouble-free entry.

The Advantage DK line of keyless entry offers just the right product for many different applications. Each model offers 1,000 fully programmable keypad codes, a programmable latch code and
sleep code, “3 strikes, you’re out” security, two relays, and an external event input.

Features

Control up to 2 gates or doors
1,000 four-digit access-code capacity
“3 strikes, you’re out” security
Personal master code
Latch code
Sleep code
Non-volatile memory
Variable relay time
Event input
Audible tones and LED feedback
Nightlight

Two-year limited warranty

Specifications

Physical
Dimensions: 5.25h x 4.75w x 4.50d
16-gauge stainless-steel faceplate
16-gauge powder-coated enclosure
Ship weight: 5 lbs.

Electrical
Input: 12-24 VAC/DC
Output: n/o or n/c contact 1–99 seconds

Relay
DC Load AC Load
Contact Rating 1A @ 24V .5A @ 120V
Max. switching voltage 150V 220V
Max. carrying current 2A 2A
Max. switching power 28W 60VA

Environmental
Operating temperature: -15 to 175°F

Intercom: 8-ohm Mylar speaker with call button
