Manual: Advantage DKE (26-100L) – Digital KeypadProduct Info
The Advantage DKE line of keypads offers both post-mount and single-gang options. All models are stand alone and have 100 fully programmable, four-digit codes.

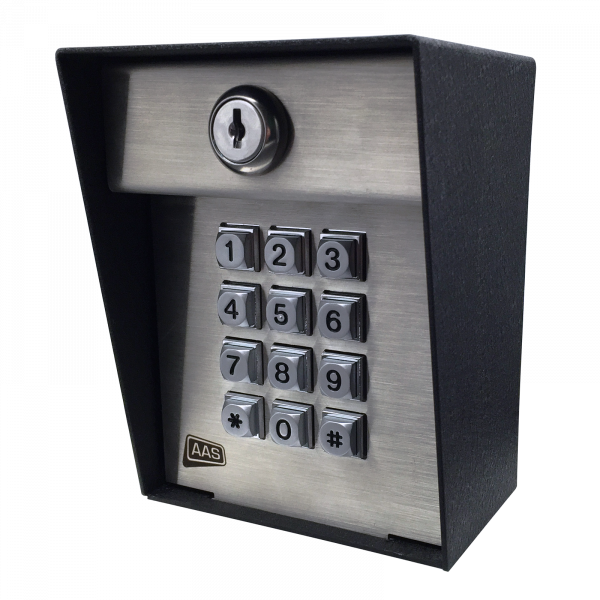

Advantage DKE post-mount models are housed in steel powder-coated enclosures with stainless-steel faceplates. With a 100-code capacity, the 26-100L and the 26-100sg keypads are the perfect solutions for many low-cost installations.
General Specifications
Input: 12-24 VAC or VDC
Output: n/o or n/c contact 1 -9 second
Operating temperature: -15 to 175 Fahrenheit
16-gauge stainless-steel faceplate
16-gauge powder-coated steel enclosure
Dimensions: 26-100L: 5.25 H x 4.00 W x 3.00 D
Ship weight: 5 lbs.
Relay Specs
DC Load / AC Load
Contact Rating 1A @ 24V / .5A @ 120V
Max. switching voltage 150V / 220V
Max. carrying current 2A / 2A
Max. switching power 28W / 60VA
Features
100 programmable four-digit codes
Programmable Personal Master Code
Programmable Latch / Unlatch Code
Nightlight
Variable relay output time: 1 – 9 seconds
Audible tone
Non-volatile memory
Power consumption: 25mA @ 24VAC
Two-year limited warranty
Norm Elder –
This is a very reliable unit and comes with first class factory support ( Colton was excellent ) . I would like to see a clear plastic cover for the keypad, to keep out
rain. Maybe an add on accessory. This is my second aas keypad, since the first one wore out after twenty eight years of every day use. Very easy install and programing.
Jeff Westfall –
Great product. Easy programming. Best economy keypad I’ve found so far.
Anthony Burgos –
By far the most reliable gate keypad…..and the most user friendly for install and adding additional codes for end user
