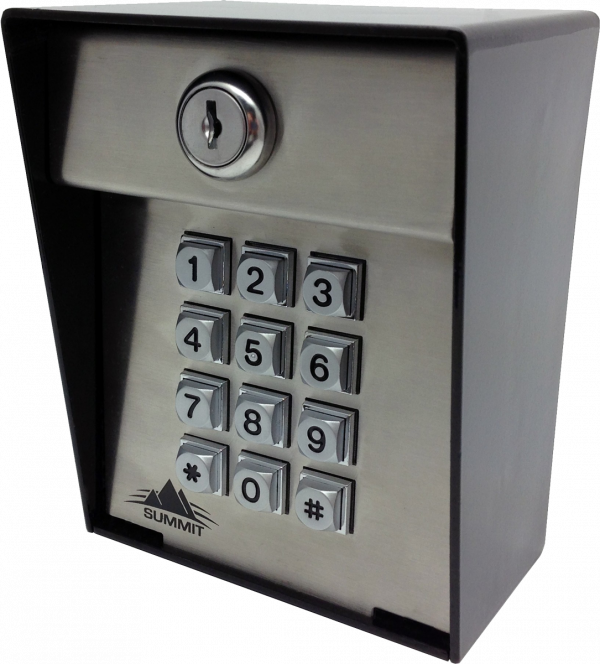

Quick Start Guide: XL 660Product Info
The XL 660 is the perfect low-cost keypad designed with the needs of the consumer in mind. A stainless-steel faceplate and powder-coated housing protect it from weather and abuse, providing years of trouble-free operation. It includes 660 four-digit codes, latch code, event input, 2 relays, variable relay output time, and “3 strikes, you’re out” security.
NOTE: 12–24 VAC/DC (POWER SUPPLY NOT INCLUDED)
Features
- Control up to 2 gates/doors
- 660 four-digit code capacity
- “3 strikes, you’re out” security
- Personal master code
- Latch code
- Variable relay time
- Event input
- Audible-tone feedback
- Non-volatile memory
- Lighted keypad
Specifications
- Input voltage: 12 to 24 VDC or VAC
- Dimensions (inches): 5.25h x 4.00w x 3.00d
- Relay:1A @ 30 VDC max.
- Power usage: 35 mA
- Temp range: 14F to
No-nonsense Operation
If you’re looking for a keypad that is easy to program and easy to use, look no further!
Feature Rich for Less
Connect two devices, set a latch code, and enjoy the convenience of an event input, all at a budget-friendly price.
Sturdy & Durable
Crafted exclusively from stainless and powder-coated steel, this box is built to last!
Programming You Know
Quick, simple, and familiar, the basic programming steps on the keypad are identical to those on all of our keypads.
Familiar Programming You Can Rely On
Two-Year Limited Warranty
Made in the USA from Global Materials
