Ascent X1

Model 16-X1

Cellular Telephone Entry System with Keypad

Specs

  • 24 VDC
  • 2 relays
  • 2 Wiegand inputs
  • 3 digital inputs
  • Video calling with IR for low light
  • LED downlight and LED-backlit controls
  • Powered by Summit Control
Spec Sheet Activate Ascent Unit

Additional Wiring Diagrams

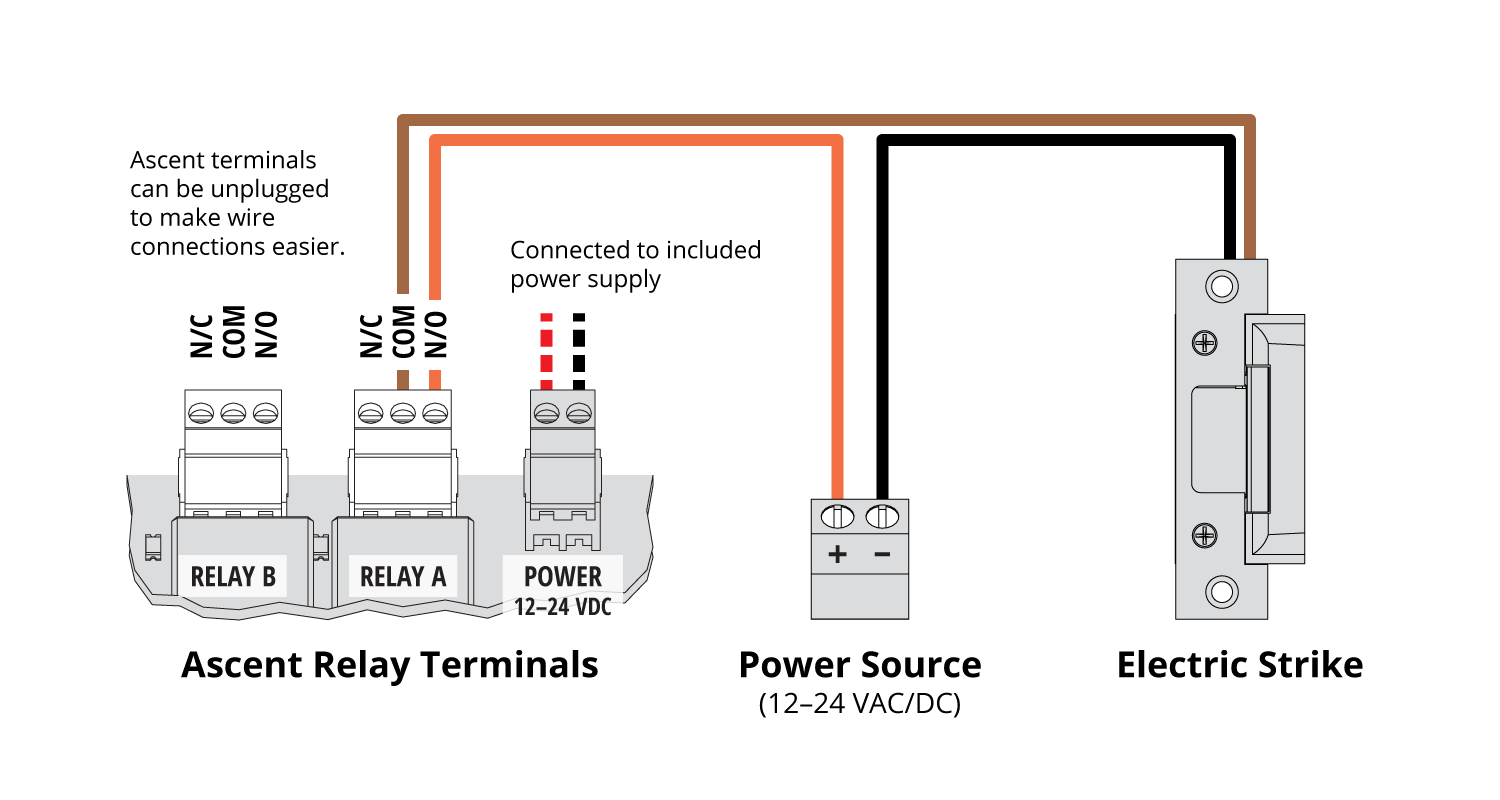

Electric Strike

Mag Lock

Digital Input to Magnetic Contact (Close)

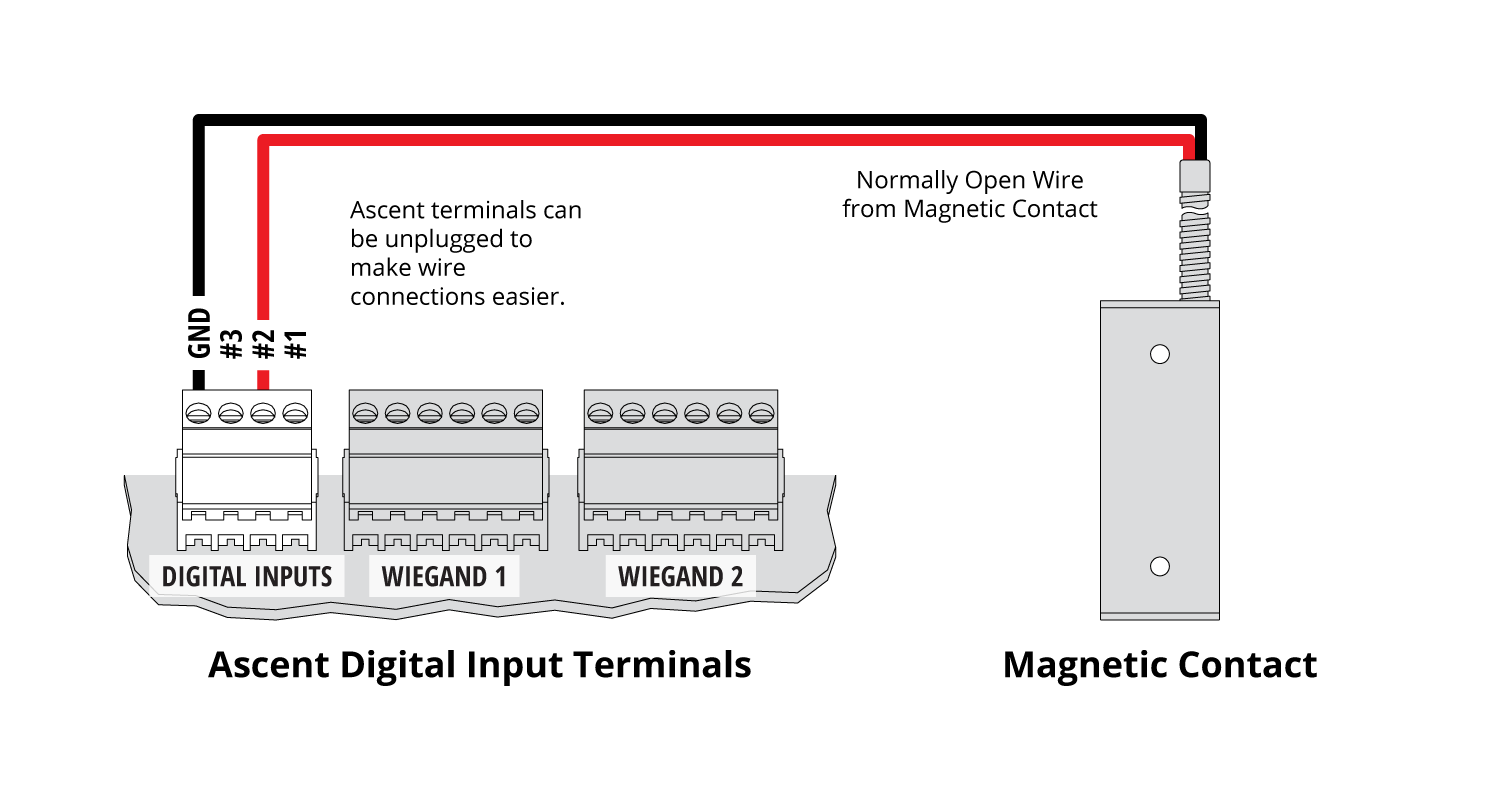

Digital Input to Magnetic Contact (Open)

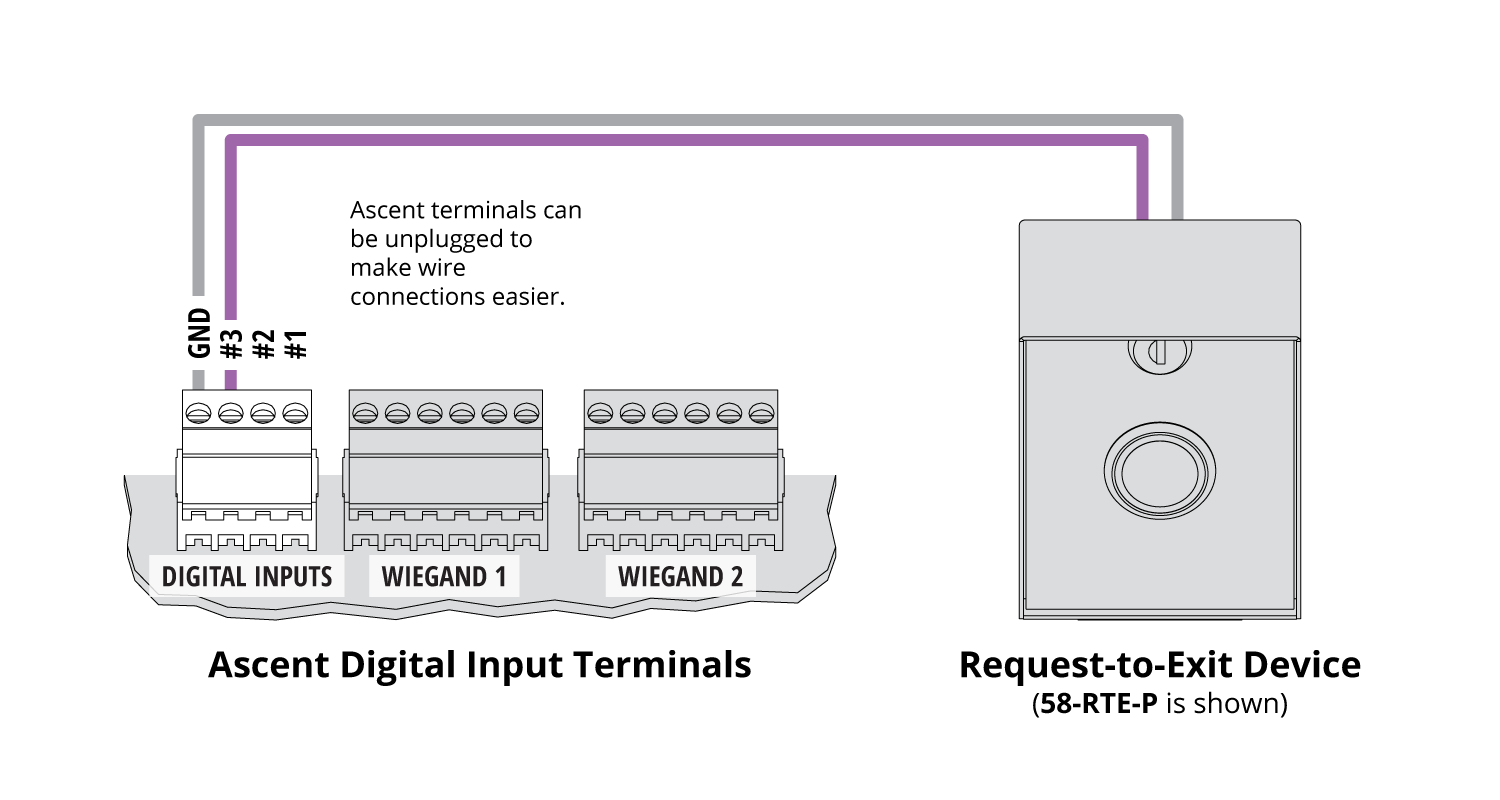

Digital Input to RTE Station

Documents

Install Guide
