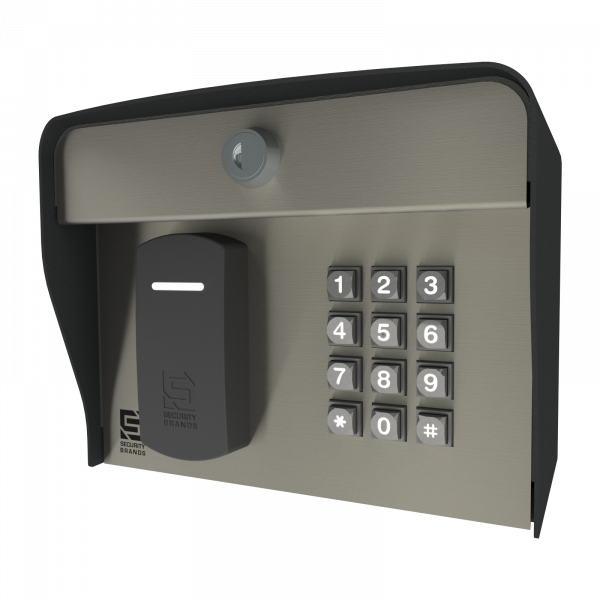

Edge E3 SecurePass – Smart Keypad and Card Reader with SecurePass Proximity Reader

Model 27-230

A smart keypad and card reader with a Security Brands SecurePass CR1 proximity reader, 1 Wiegand input, a Bluetooth connection, and a mobile administrator app, Edge offers the simplicity of a stand-alone keypad and card reader but adds the power of app-based programming and management.

Quick Start Guide: Edge E3 HID, SBI, SK

Direct Programming Manual: Edge

Product Guide: Edge Smart Keypads and Card Readers

Spec Sheet: Edge (27 Series) – Smart Keypads and Card Readers

List of Supported Android Devices for Edge Family of Smart Keypads and Card Readers

Product Info

Edge E3 SecurePass is not just a keypad or a card reader. It’s a smart keypad AND card reader.

Program and control at the unit. Program and manage with the mobile administrator app. Connect to the unit via Bluetooth to update, sync data, and export reports.

Features

  • Security Brands SecurePass CR1 proximity reader
  • Bluetooth connectivity
  • 1 Wiegand input
  • Control of up to 2 gates/doors
  • 2 event inputs
  • 2 digital inputs
  • App-based programming and management
  • SBI Flex™ 64-bit and standard 26-bit Wiegand protocols

Powerfully Simple App
All programming and management can be done quickly and securely via the app.

SBI Flex 64-Bit Protocol
Our proprietary Wiegand protocol allows for 4- to 11-digit keypad codes with 3-digit facility code for maximum flexibility.

Dual 365-Day Timers
A separate 365-day timer on each relay gives you the versatility and control you need.

Configurable User Permissions
Set specific user permissions on all keypad codes, transmitters, card readers, and vehicle tag readers independently.

Edge Smart Keypad App available on Apple and Android devices.

Two-Year Limited Warranty

Made in the USA from Global Materials

Other Great Features

  • Limited-use codes with use, 7-day, and 365-day restrictions
  • 7-day and 365-day timers (one for each relay)
  • Holiday timers (one for each relay)
  • Special-event timers (one for each relay)
  • Event reports with CSV export
  • Random code generation
  • Alarm shunt
  • Anti-passback
  • Firmware updates via app
  • Stainless-steel faceplate
  • Powder-coated steel enclosure
  • LED-backlit keypad
