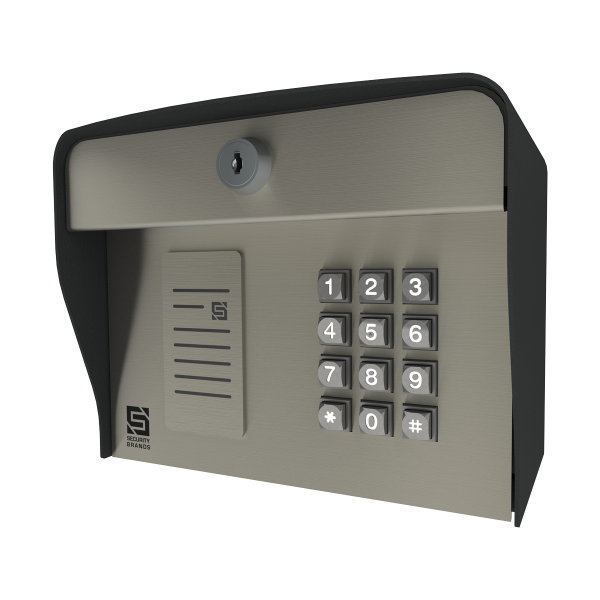

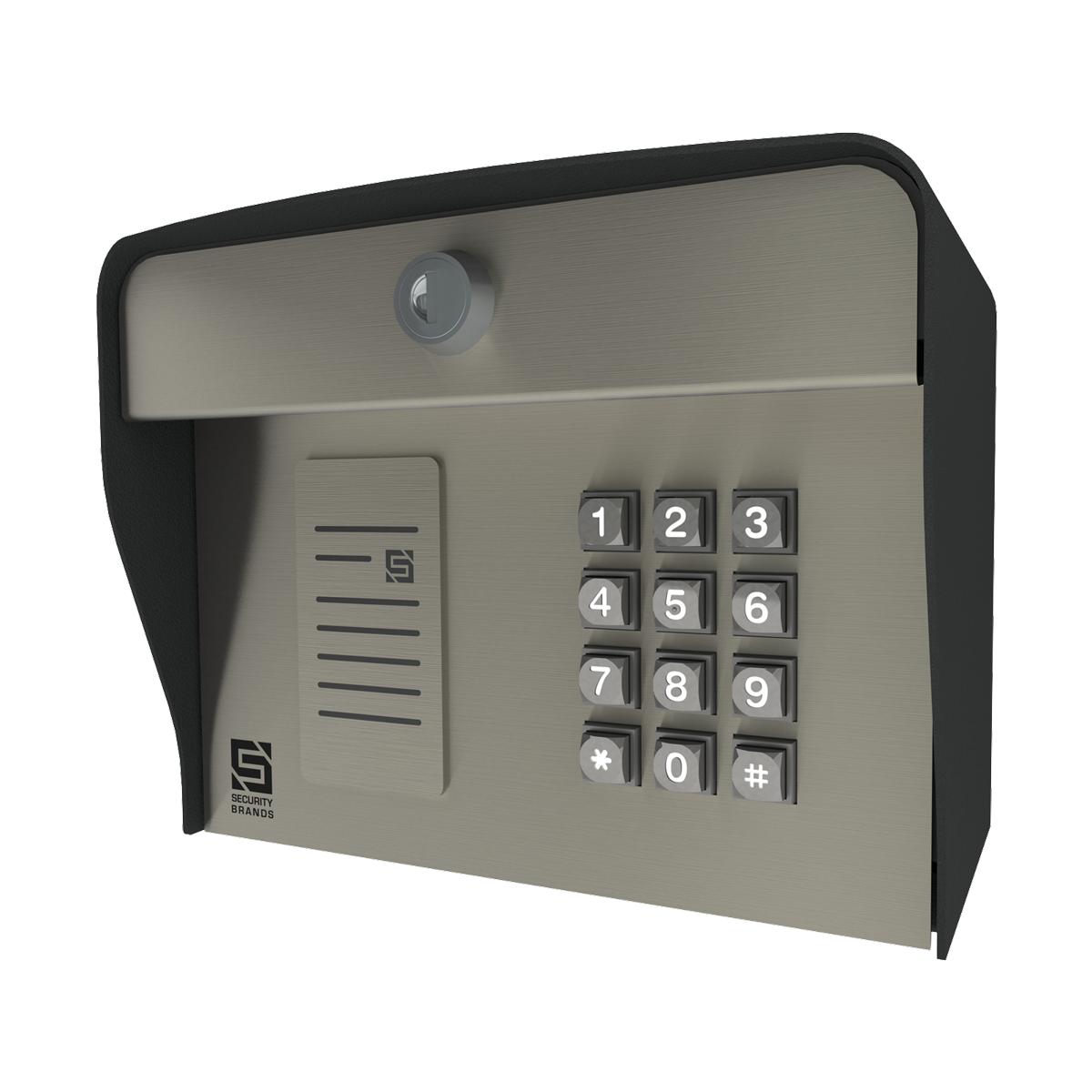

Edge E1 – Smart Keypad

Model 27-210

Coming Soon

A smart keypad with 2 Wiegand inputs, a Bluetooth connection, and a smartphone app. Edge offers the simplicity of a stand-alone keypad but adds the power of app-based programming and management.

Product Guide: Edge Smart Keypads and Card Readers

Spec Sheet: Edge (27 Series) – Smart Keypads and Card Readers

SKU: 27-210 Category:

Product Info

Edge E1 is not just a keypad. It’s a smart keypad.

Control at the unit. Program and manage with the smartphone app. Connect to the unit via Bluetooth to update and sync data.


  • Bluetooth connectivity
  • 2 Wiegand inputs
  • Control of up to 2 gates/doors
  • 2 event inputs
  • 2 digital inputs
  • App-based programming and management
  • SBI Flex™ 64-bit and standard 26-bit protocol

Powerfully Simple App
All programming and management can be done quickly and securely via the app.

SBI Flex 64-Bit Protocol
Our proprietary Wiegand protocol allows for 4- to 11-digit keypad codes with 3-digit facility code for maximum flexibility.

Dual 365-Day Timers
A separate 365-day timer on each relay gives you the versatility and control you need.

Configurable User Permissions
Set specific user permissions on all keypad codes, transmitters, card readers, and long-range tag readers independently.

Edge Smart Keypad App available on Apple and Android devices.

Two-Year Limited Warranty

Made in the USA from Global Materials

Other Great Features

  • Time-restricted keypad codes with 7-day and 365-day scheduling
  • Limited-use keypad codes
  • 7-day and 365-day timers (one for each relay)
  • Holiday timers (one for each relay)
  • Special-event timers (one for each relay)
  • Quick temporary user setup
  • Event reports with CSV/Excel/PDF export
  • Random code generation
  • Alarm shunt
  • Anti-passback
  • Firmware updates via app
  • Stainless-steel faceplate
  • Powder-coated steel enclosure
  • Backlit keypad
